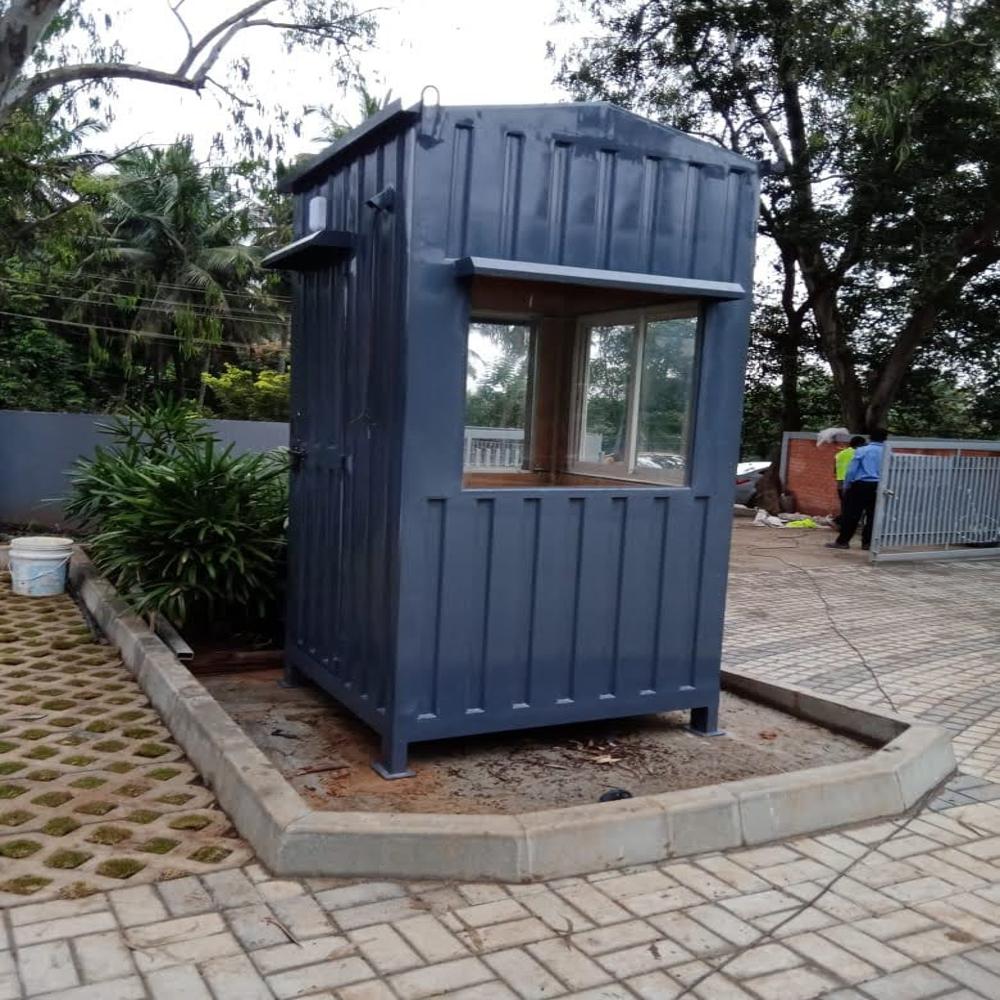

Security Cabin

TECHNICAL SPECIFICATION

Sr.No

Component

Description

1

Bottom Frame

100mmX50mm MS Square tubes & 50mmX50mm MS Square tubes.

2

Top Frame

Top frame made up of 50X50mm MS Square tubes.

3

Stiffeners Bottom

50x50mm & 25X50mm MS tubular pipe & legs of 100X50 square tube for Proper placing.

4

Stiffeners Top

50x25x2mm & 50x50 MS tubular pipe.

5

Side Post

Specially formed 50X50mm MS Post Section.

6

Side Wall Stiffeners

Specially formed 50X25mm  MS square tubes

7

Paneling Outside

1.2mm Specially corrugated MS Sheet of 18G welded on MS structure frame.

8

Slanted Roof Outside

1.2mm thick slanted roof with Specially formed rain gutters or water channel of MS Sheet of 18G welded on MS structure frame.

9

Insulation

Thermal insulation of glass wool of density 48kg/m3 50mm inside roof & 25mm glass wool for side walls.

10

Bottom Flooring

18mm bison board Panels & 1.5mm thick PVC vinyl carpet shall be fixed by means of self-tapping screw shall be fixed on the floor

11

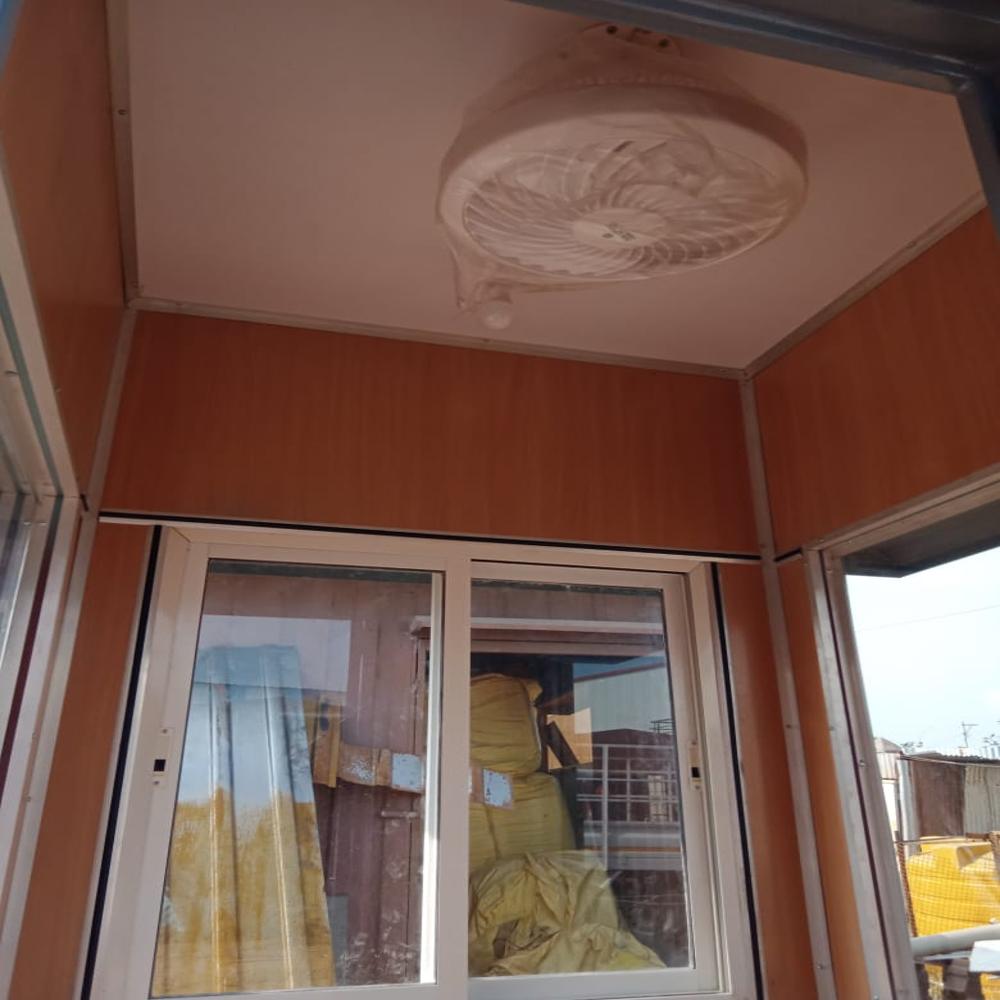

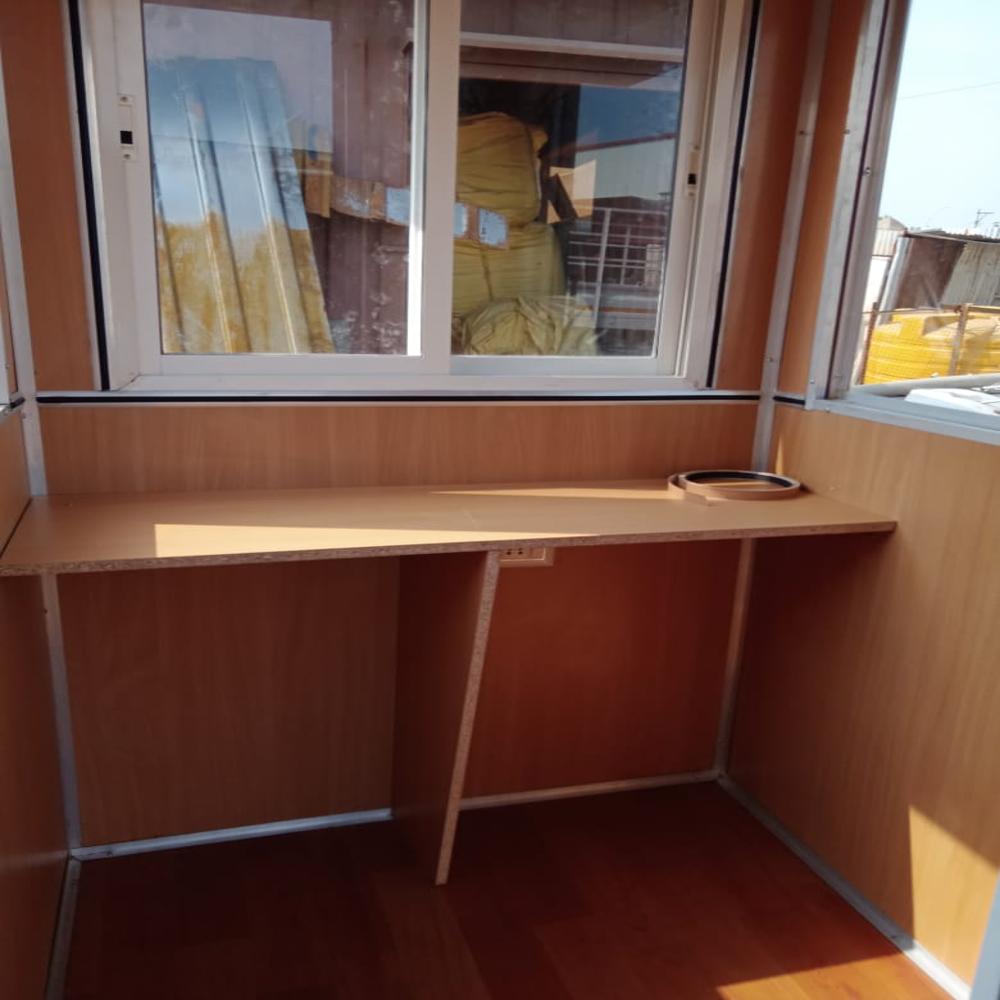

For Security Internal wall paneling

Pre-laminated MDF board of 8mm & all vertical & horizontal corners will be neatly & smoothly Finished with aluminum sections for internal walls & ceiling.

12

MS Door

Door shall be external opening type made up of same material as wall with std hardware lock & handle & canopy above the door.

13

Windows

Aluminum sliding window 1Nos. with 4mm thick glass & 2Nos fixed rigid glass & canopy above all the windows.

14

Wiring

Wiring shall be done using PVC conduit using fire resistance wires.

15

Electrical Fittings

LED Bulb / LED Tube lights, Cabins Fan, Bulk head light.

16

Outside Painting

Phosphate the Cabin internally & externally and painting with coat of primer &Two coat of corrosion free paint.

17

Hooks

Specially formed hooks for easy lifting & shifting.

Provision of 4inch legs with base plate for all corner posts. (4 Inch - Legs-4Nos)
