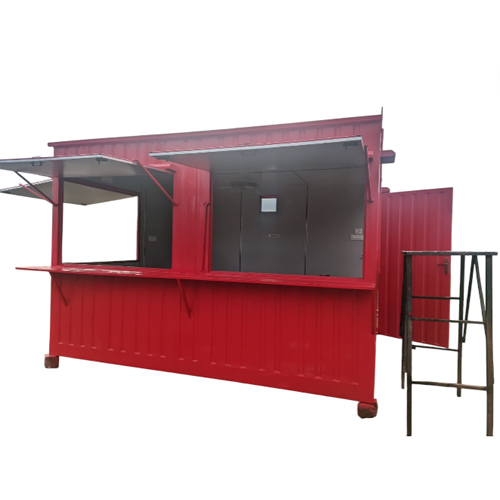

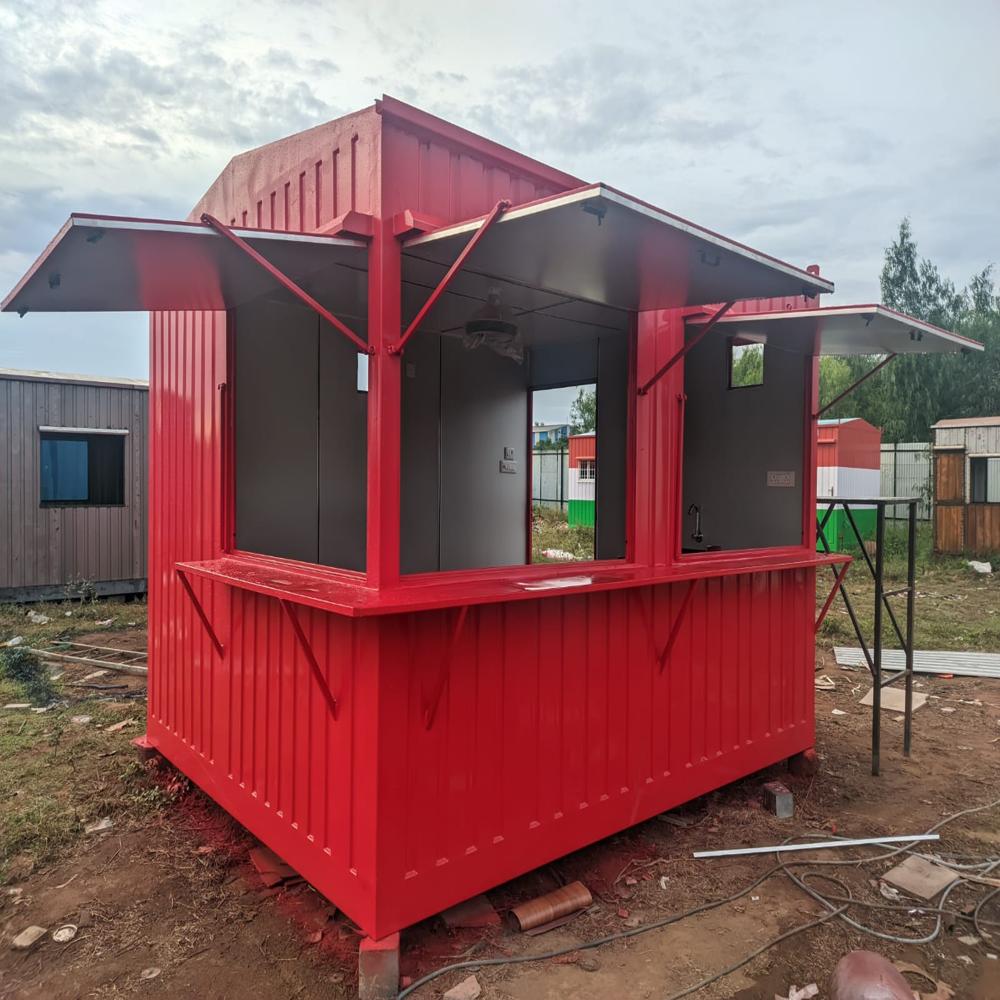

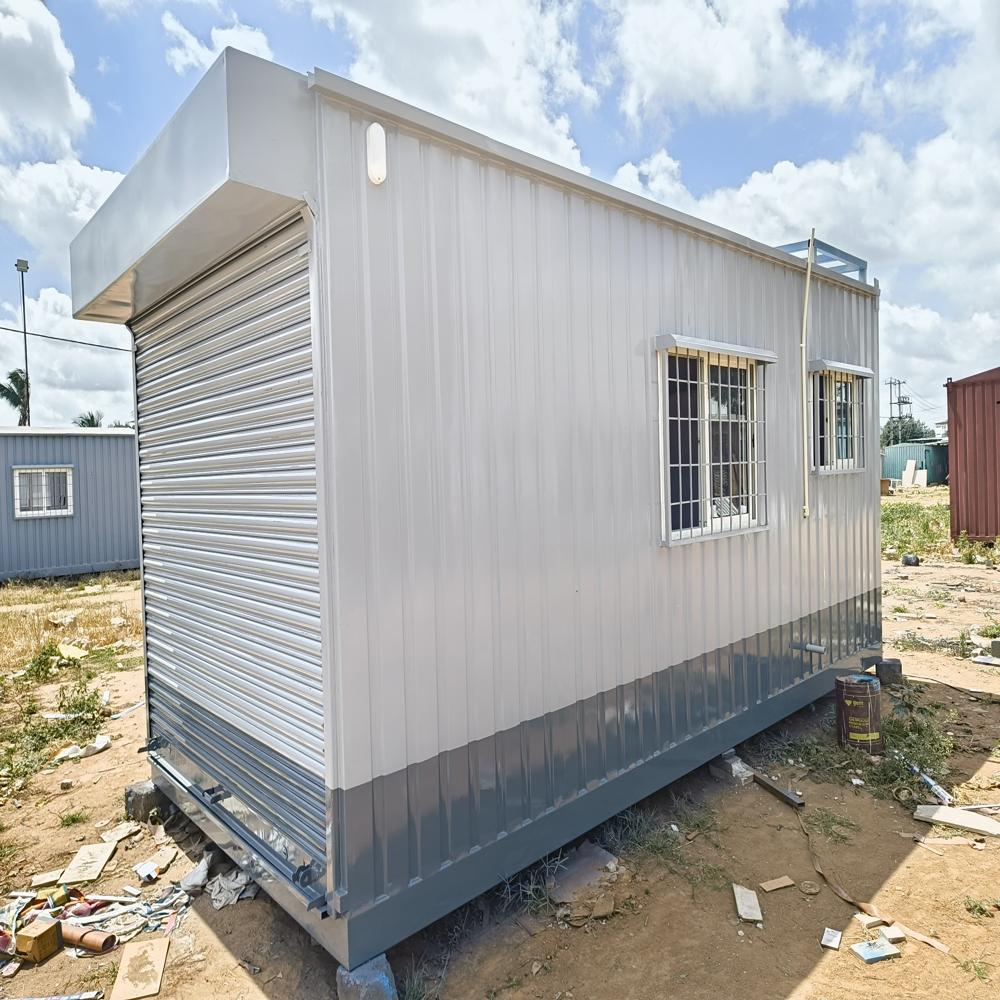

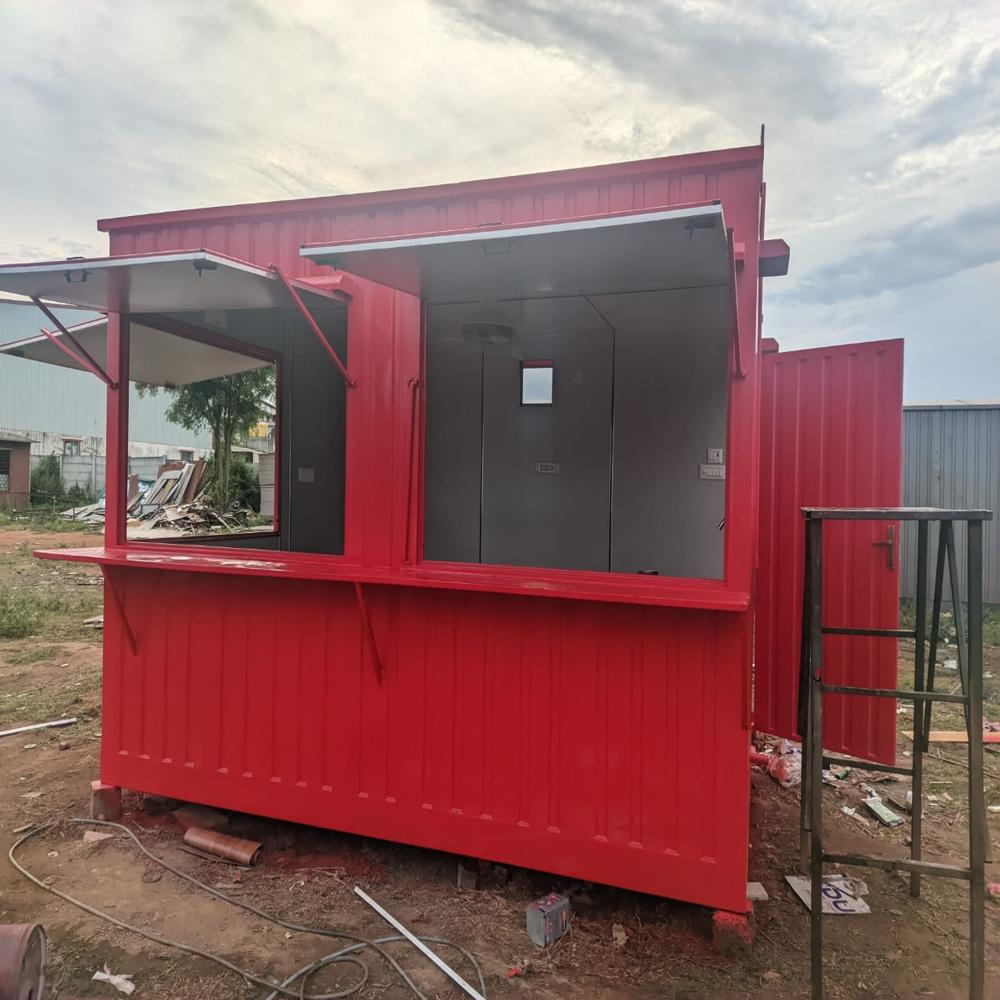

MS Fabricated Portable Shop Cabin

TECHNICAL SPECIFICATION

Sr.No

Component

Description

1

Bottom Frame

Specially formed 140x60 G- channel, 100X50 C-channel & 100X50mm Specially Formed MS Square tubes.

2

Top Frame

Top frame made of 50X50mm, 50X25mm, 25x25mm Specially Formed MS Square tubes.

3

Stiffeners Bottom

100X50mm, 50x50mm MS Square pipes.

4

Stiffeners Top

50X50mm 50x25 & 25x25 MS Sq. Tubes

5

Side Wall Stiffeners

Specially formed 50x50, 50X25mm 1.2mm MS square tubes

6

Paneling Outside

1.2 mm Specially corrugated MS Sheet of 18G welded on MS structure frame.

7

Slanted Roof Outside

1.2 mm thick slanted roof with Specially formed rain gutters or water channel of MS Sheet of 18G welded on MS structure frame.

8

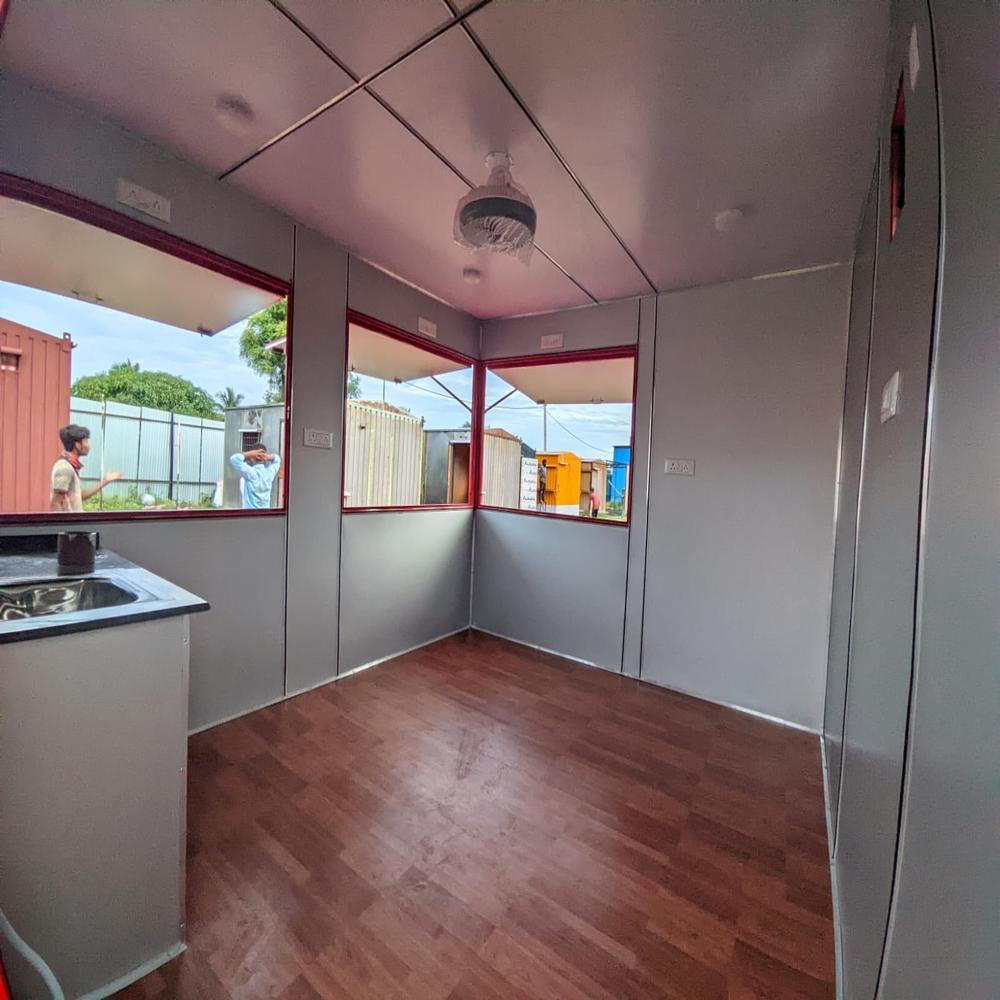

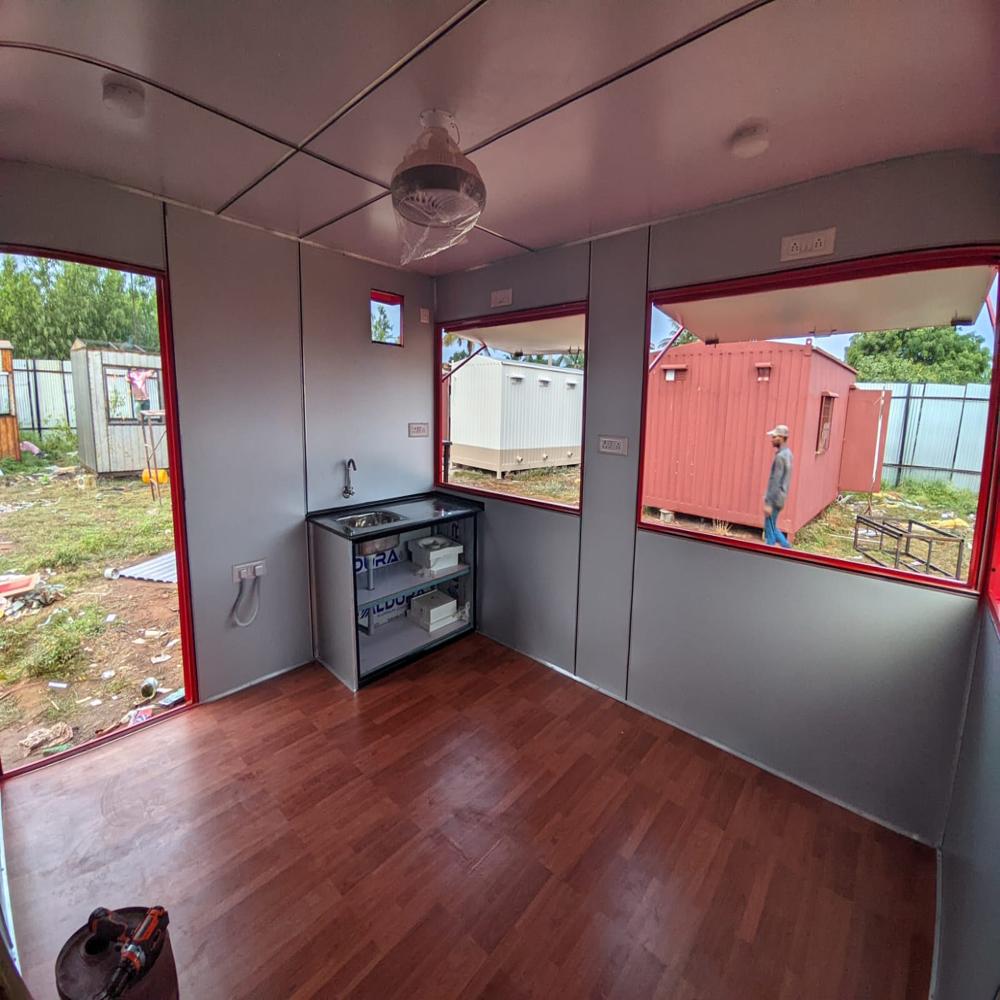

Internal wall paneling

Pre-laminated MDF board of 8mm & all vertical & horizontal corners will be neatly & smoothly finished with aluminum sections for internal walls & ceiling.

9

Insulation

Thermal insulation of glass wool of density 48kg/m3 50mm inside roof & 25mm glass wool for side walls.

10

Bottom Flooring

18mm bison board Panels & 1.5mm thick PVC vinyl carpet shall be fixed by means of self-tapping screw shall be fixed on the floor.

11

Aluminum Window

Aluminum powder coated sliding windows in each container with 4mm thick glass for all windows with safety grills & canopy above the windows.

12

MS Door 3X7

Door shall be of external open & made of same material as walls & canopy above the door, door frame made of 25x25mm square tubes Door with std hardware Locks, Handles.

13

Warring

Wiring shall be done using PVC conduit & fire resistance wires of ISI quality

suitable for 240V single phase AC supply 1.5sqmm & 2.5sqmm thick cable

for Light & fan fittings, 5amps switches & socket, 4mm thick cable for main

Electric supply with MCB.

14

Electrical Fittings

Led Tube Light, Door lights, Cabin Fan, AC Point, power points, Switches and Sockets. (ISI Mark)

15

Outside Painting

Outside painting with a coat of primer & 2 coats of corrosion free paint.

16

Hooks

Specially formed 10x4 16mm thick MS hooks for easy lifting & shifting..
